Industrial Air cooled Chiller Environmental protection and energy saving
1. Performance Characteristic:
1. The device can cool the water temperature ranging from 7 ℃ to 35 ℃, the low cooling temperature can be customized as per customer’s needs
2. The micro computer controls the system running and the temperature can be precise to ±1 ℃
3. The overload protection device is used for compressor and pump to prolong the service life
4. The multi protection device(antifreezing protection, high and low pressure protection and flow protection) ensures the system safety
5. The water tank is made from the stainless steel and has a heat insulation layer. Freezing pipelines have the insulation layer to improve refrigerating efficiency
6. Low speed and noise blower fan
7. The blower fan stops along with the compressor, thus effective electric energy saving
2. Specification
| Model | SL-3A | SL-5A | SL-10A | SL-15A | SL-20A | SL-30A | SL-40A | SL-50A | SL-60A |
| Refrigeration capacity | KW | 10 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 180 |
| Kcal/h | 7740 | 12900 | 25800 | 38700 | 51600 | 77400 | 103200 | 129000 | 154800 |
| Compressor | power | KW | 2.2 | 3.7 | 7.5 | 11 | 15 | 22.5 | 30 | 37.5 | 45 |
| HP | 3 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 |
| Refrigerant | type | R22 |
| Filling quantity | KG | 1.5 | 2.5 | 5 | 7.5 | 10 | 12 | 18 | 30 | 35 |
| Water tank capacity | L | 60 | 90 | 180 | 270 | 360 | — | — | — | — |
| Evaporator type | Serpentine pipe type | Shell type |
| Freeze water pipe | Inch | 1 | 1 | 1.5 | 2.0 | 2 | 3 | 3 | 4 | 4 |
| Freeze water flow rate | L/min | 60 | 90 | 180 | 270 | 270 | 270 | 380 | 460 | 550 |
| M3/h | 3.6 | 5.4 | 11 | 16 | 16 | 16 | 23 | 28 | 33 |
| Fan motor | Type | Axial flow type blower fan |
| Power | KW | 0.45 | 0.45 | 0.45*2 | 0.65*2 | 0.65*2 | 0.65*4 | 0.65*4 | 1.1*2 | 1.8*4 |
| Safeguard | Protection of high & low pressure, compressor overload, pump overload, anti-freezing, flow rate |
| Power | AC3+N+PE 50/60HZ |
| Dimensions(mm) | L | 750 | 1100 | 1450 | 2200 | 2200 | 2200 | 2500 | 2500 | 3000 |
| W | 680 | 680 | 790 | 1000 | 1320 | 1320 | 1320 | 2000 | 2200 |
| H | 900 | 1100 | 1120 | 2100 | 2100 | 2180 | 2290 | 2180 | 2180 |
| Weight | KG | 100 | 160 | 300 | 700 | 750 | 1400 | 1600 | 2200 | 2400 |

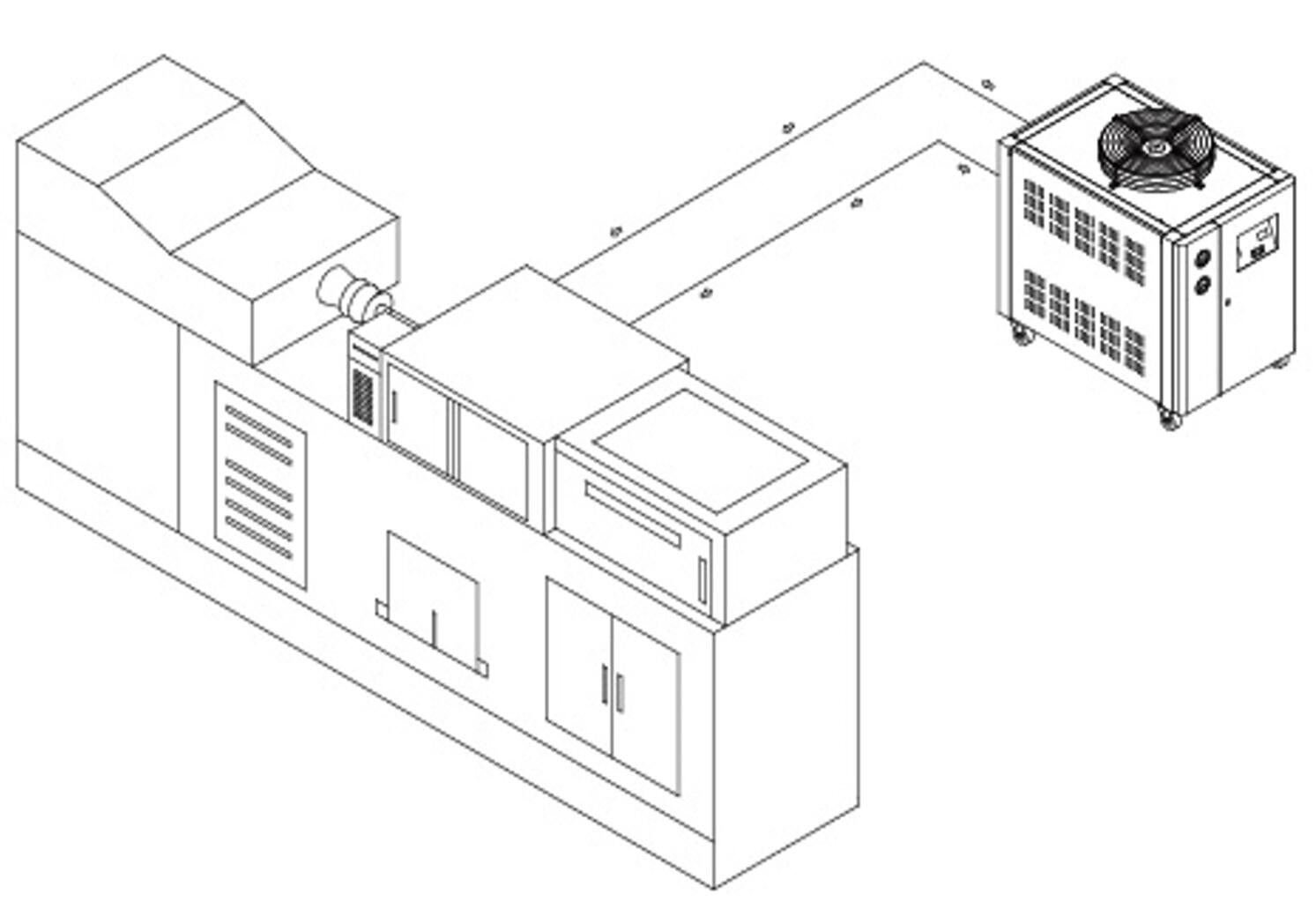

3. Diagram of installatio
Product Tags:
|
|

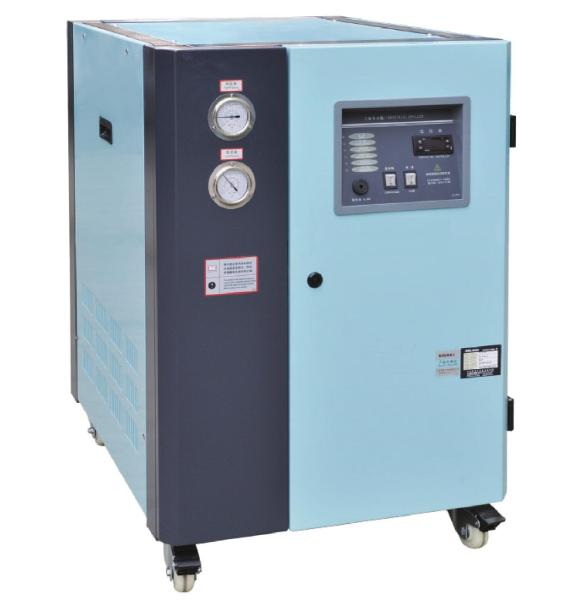

CE 10kw 60L Serpentine pipe Air Cooled Chiller Images
|
