80m3 Honeycomb Dehumidifying Dryer Plastic Auxiliary Machine

Brand Name : SEBOS

Model Number : SLD

Certification : CE

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Payment Terms : 100%T/T before shipment

Supply Ability : 100 sets per month

Delivery Time : 15 days

Packaging Details : Wooden case

Energy saving : 40%

Medium : honeycomb

Controller : micro-computer

protection : Overload, high and low pressure

Dew point : - 50 ℃

Technical training service : Available

Contact Now

1. Performance Characteristic:

1. The device can cool the water temperature ranging from 7 ℃ to 35 ℃, the low cooling temperature can be customized as per customer’s needs

2. The micro computer controls the system running and the temperature can be precise to ±1 ℃

3. The overload protection device is used for compressor and pump to prolong the service life

4. The multi protection device(antifreezing protection, high and low pressure protection and flow protection) ensures the system safety

5. The water tank is made from the stainless steel and has a heat insulation layer. Freezing pipelines have the insulation layer to improve refrigerating efficiency

6. Low speed and noise blower fan

7. The blower fan stops along with the compressor, thus effective electric energy saving

2. Specification

Model

Dry Blower

(m3/hr)

Power of

Blower

(KW)

Power of Rey.Blower

(KW)

 Power of Rey Heater(KW) Pipe Diameter (inch) Dimension (MM) Weight(KG)
SLD-80 80 0.55 0.37 4.2 2” 750*600*1230 155
SLD-100 100 0.75 0.37 5 2” 750*600*1230 165
SLD-120 120 1.1 0.37 5 2” 900*650*1330 202
SLD-150 150 1.5 0.55 7 2.5” 900*650*1330 208
SLD-200 200 2.2 0.55 7 2.5” 900*650*1330 220
SLD-300 300 3 0.75 9 3.5” 1050*800*1550 278
SLD-400 400 4 0.75 9 3.5” 1050*800*1550 300
SLD-500 500 5.5 1.1 12 5” 1250*900*1620 400
SLD-700 700 7.5 1.5 15 5” 1250*900*1620 450
SLD-1000 1000 8 2.2 18 6” 1450*1150*1770 500
SLD-1500 1500 11 2.2 21 6” 1450*1150*1770 530
SLD-2000 2000 15 3 27 8” 1600*1250*1870 570

3. Diagram of installatio

80m3 Honeycomb Dehumidifying Dryer Plastic Auxiliary Machine

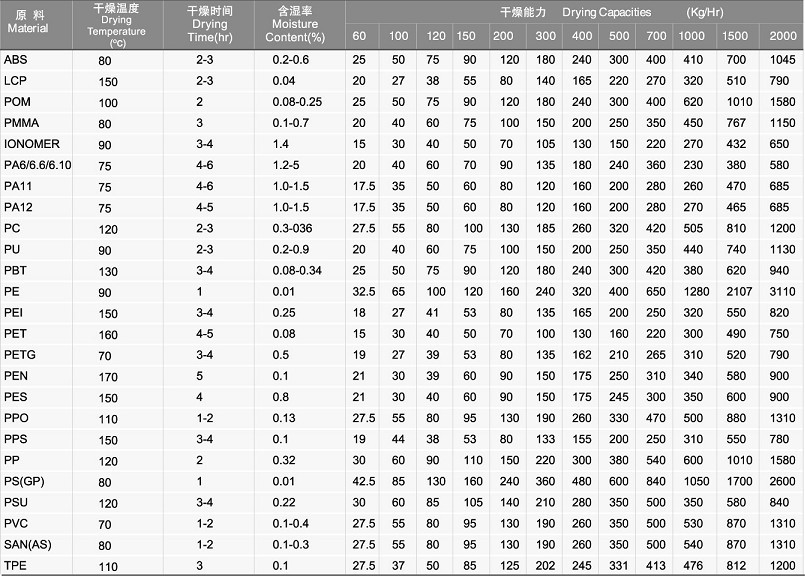

4. Timetable of material drying

80m3 Honeycomb Dehumidifying Dryer Plastic Auxiliary Machine
