Copper aluminum extruder servo energy saving device retrofitting Super power saving
15 years of professional reform experience create brilliant in market
1. Servo energy saving retrofitting project of Copper aluminum extruder machine
Retrofitting principle:
1.1) Servo control system supply pressure and flux according to the machine’s demand
1.2) PLC outputs the corresponding signals according to each action to control the output frequency of the driver, so that the output flow of pump is precisely matched with the requird
1.3) the external HMI is used to set up all the running parameters, showing the system running status and abnormal alarm information
1.4) Don't change the original control system and hydraulic system

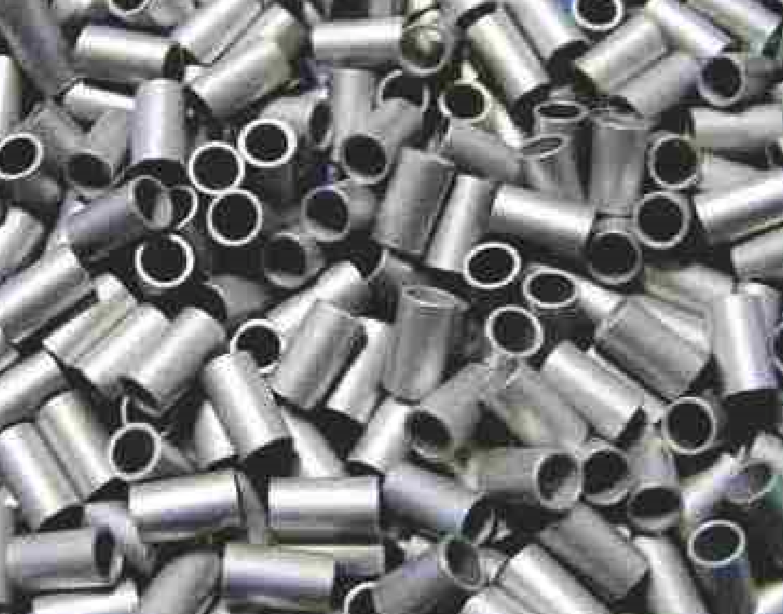

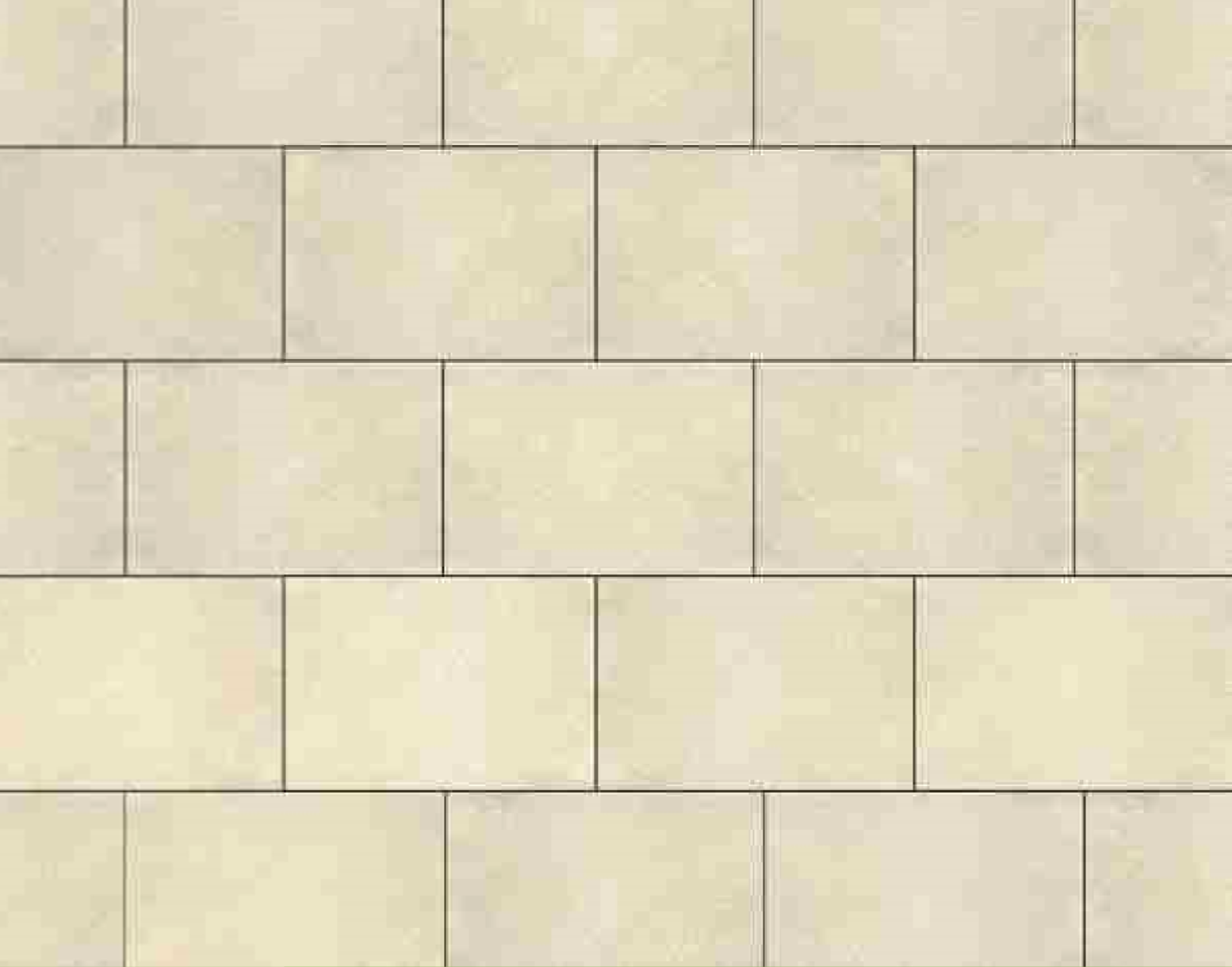

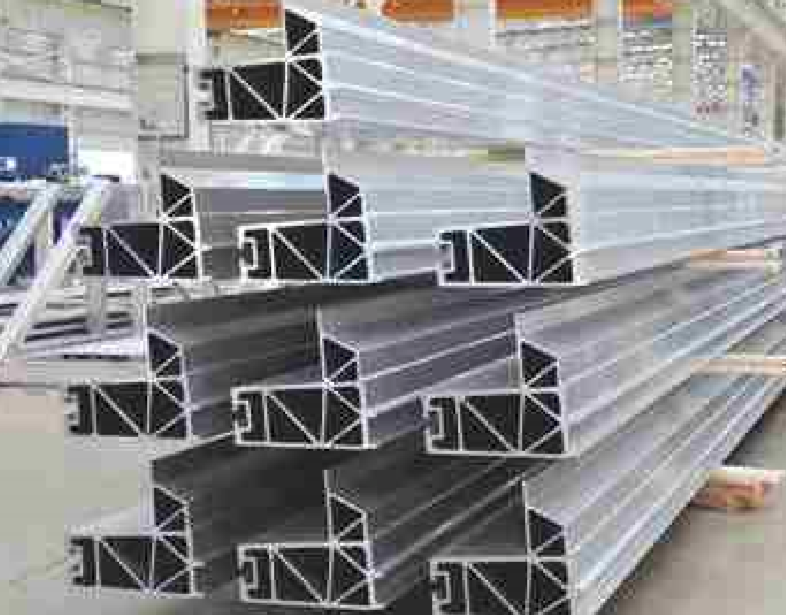

The special servo system retrofitting is used in the production of ceramic brick and profile pipe fittings.
2. Advantage
1) Super energy saving: energy saving rate 25%-55%
2) Super stability: Widely speed rang and strong overload capacity
3) Excellent voltage range: 330V-600V
4) Both have motor KTY and PTC overheating protection function
5) Many additional green values: Extend the using life, Low noise, Reduce the use of cooling water
6) We supply the whole completed servo system:Including servo driver, servo motor, SUMITOMO gear pump, electric cabinet, electric resistance, pressure sensor, magnet ring, press-flow shields semaphore wire, power cable, oil flange, oil suction pipe, semaphore converts board, U-steel and so on
7) Fast installation service: 100T-1500T machine takes 2 days to install servo energy saving system; 1500-3000T takes 4 days to install servo energy saving system
3. Specification
| SEBOS Servo Energy Saving System Specification |
| Servo system model | Servo motor | Pump | Servo driver | Die casting machine reference |
| Model | Flow L/Min | Model | KW | Model | Cc/r | Model | KW | Motor KW | Pressure MPA | Flow L/Min |
| DS-14168-STS | 168 | SM130Y-18 | 24.5 | QT62-80 | 80 | IS580T050-C | 30 | 22 | 14 | 135 |
| DS-14220-STS | 220 | SM180Y-18 | 33.9 | QT62-100 | 100 | IS580T070-C | 37 | 30 | 14 | 184 |
| DS-14275-STS | 278 | SM225Y-15 | 35.3 | QT62-125 | 125 | IS580T080-C | 45 | 37 | 14 | 226 |
| DS-14342-STS | 342 | SM280Y-18 | 52.7 | QT6252-100-63 | 163 | IS580T100-C | 55 | 55 | 14 | 320 |
| DS-14394-STS | 394 | SM360Y-18 | 67.8 | QT6252-125-63 | 188 | IS580T140-C | 75 | 60 | 14 | 400 |
4. Quality assurance
Production Dectection
Assembling System testing
Packaging Put in storage
5. Promise
If the energy saving rate is not good, don’t need to pay
If the servo system performance is not good, don’t need to pay
If the installation service is not good, don’t need to pay
The desire to save energy is delivered to us, SEBOS is your loyal parter
